Capacity

Max. 30 m3/h

Conveyor Belt Drive

Drum ve Gear Motor

Power of Alternator

50 Hz, 7 KVA

Movement Mechanism

Rubber Wheel

Weight

2400 kg

TS-R 1600 Trommel Screen

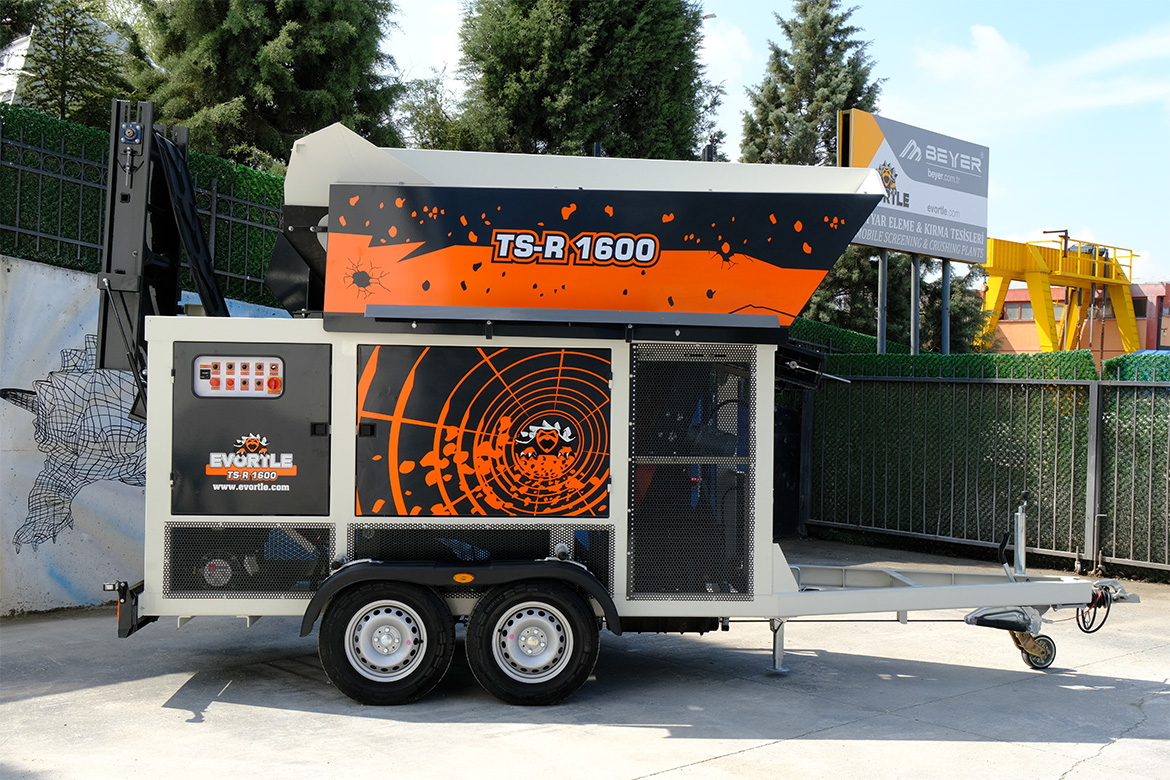

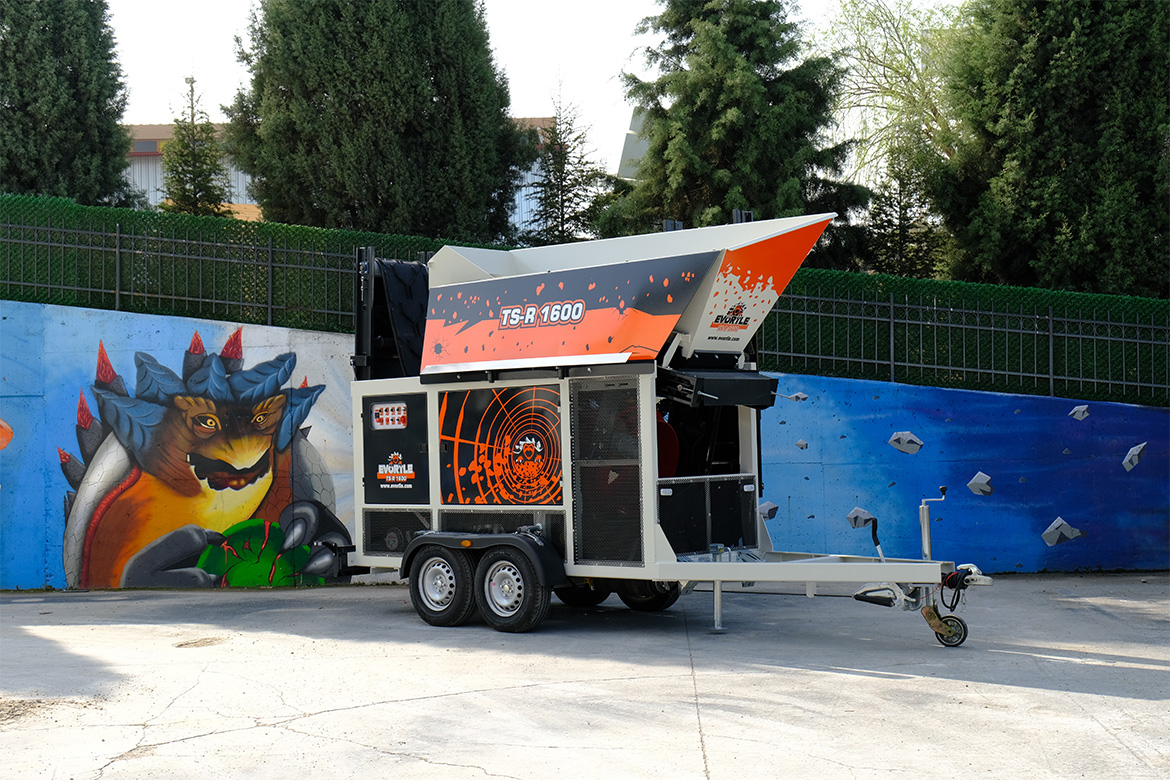

TS-R 1600 is a mobile screening machine that can used in construction, mining, landscape, food product, recycling and aggregate industries.

It can show a better perform to compare the normal screening machines in moist materials that moists rates higher than %5, TS-R 1600 screen the materials into the size effectively by turn the materials in inside of the trommel. This system both prevent potential clogging and provide high productivity.

Thanks to adjustable speed control, TS-R 1600 can save time into the production process while doing high capacity material sorting. Its energy saving structure can allow for seperate smaller material by using lower energy.

The brush that integrated the drum, cleans the drum automatically in every turn; as a result of this system clogging risk can decrease the minimum and non-stop working can be provided. Rotating trommel structure especially provide to stuck a moist and sticky materials, thus screen productivity can be protected.

TS-R 1600 with a compact and space saving design, can be useable and enable to operational flexibility even in narrow spaces.

Technical Properties

Capasity Max. 30 m3/h

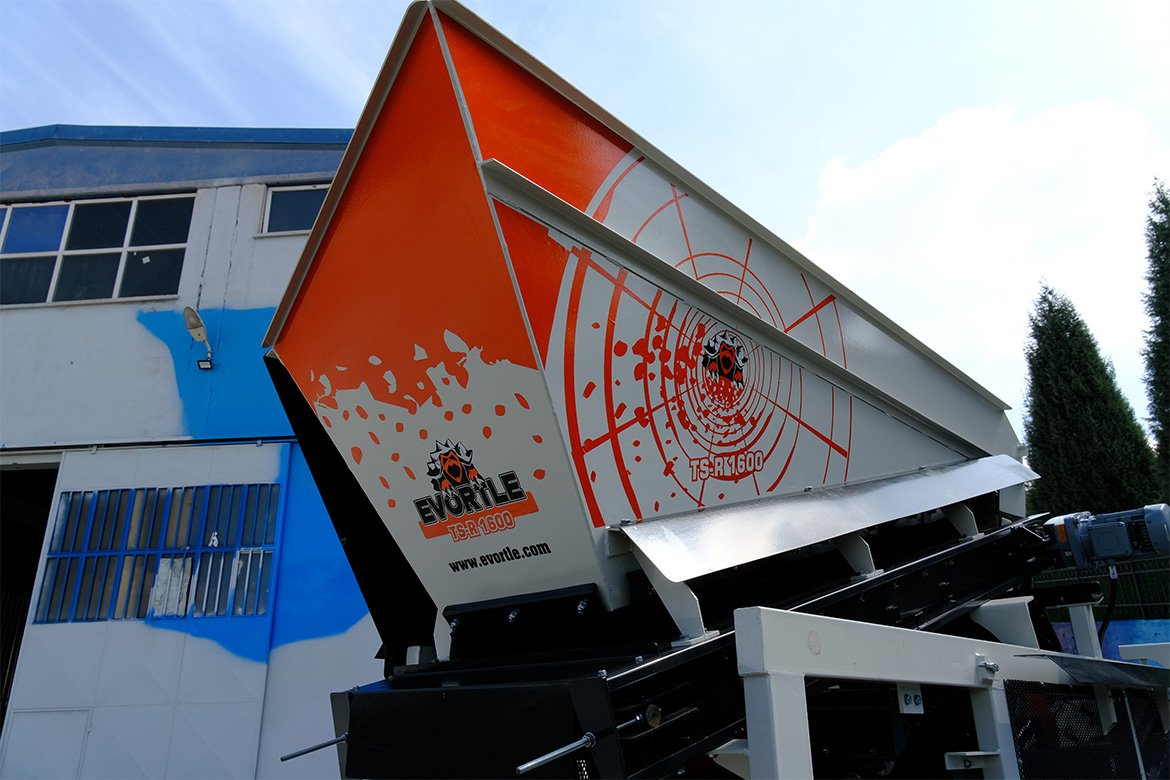

Feeder Hopper Around 1,5 m3
Speed Adjustable Dosing Belt Conveyor

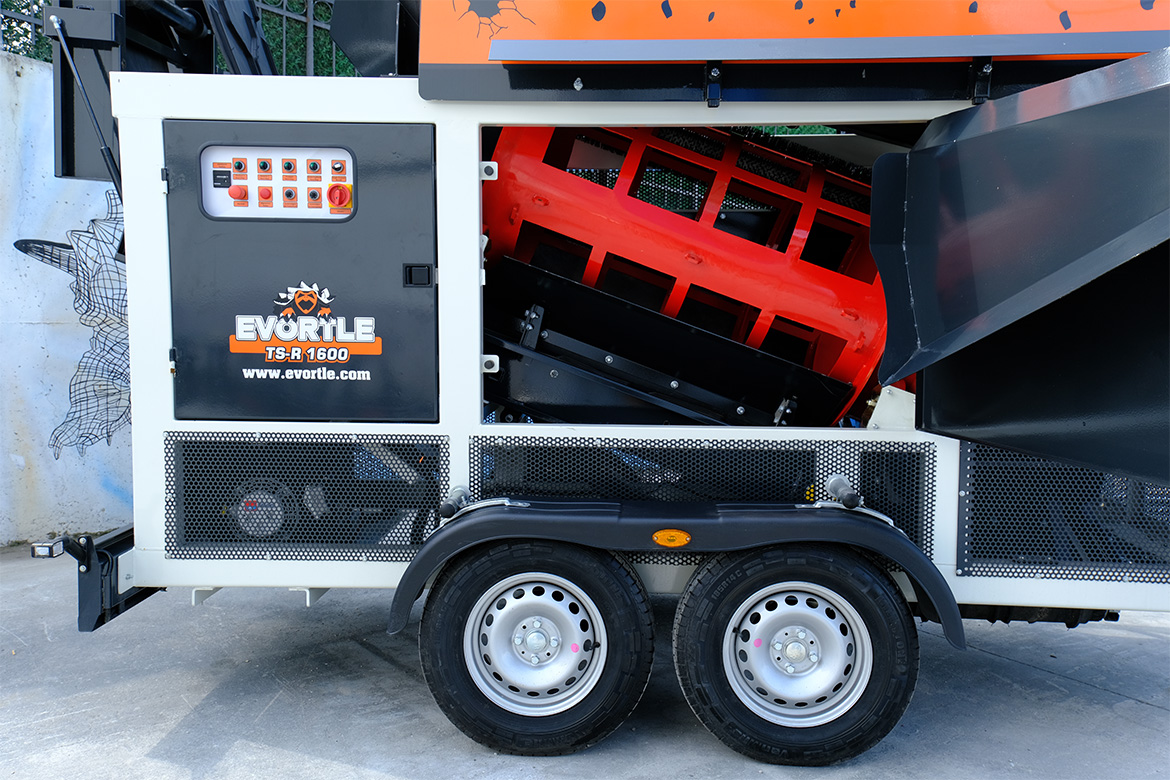

Screw-Driven, Chain-Driven Rotating Trommel Screen
Screen Dimension 740 mm/ 1 stage

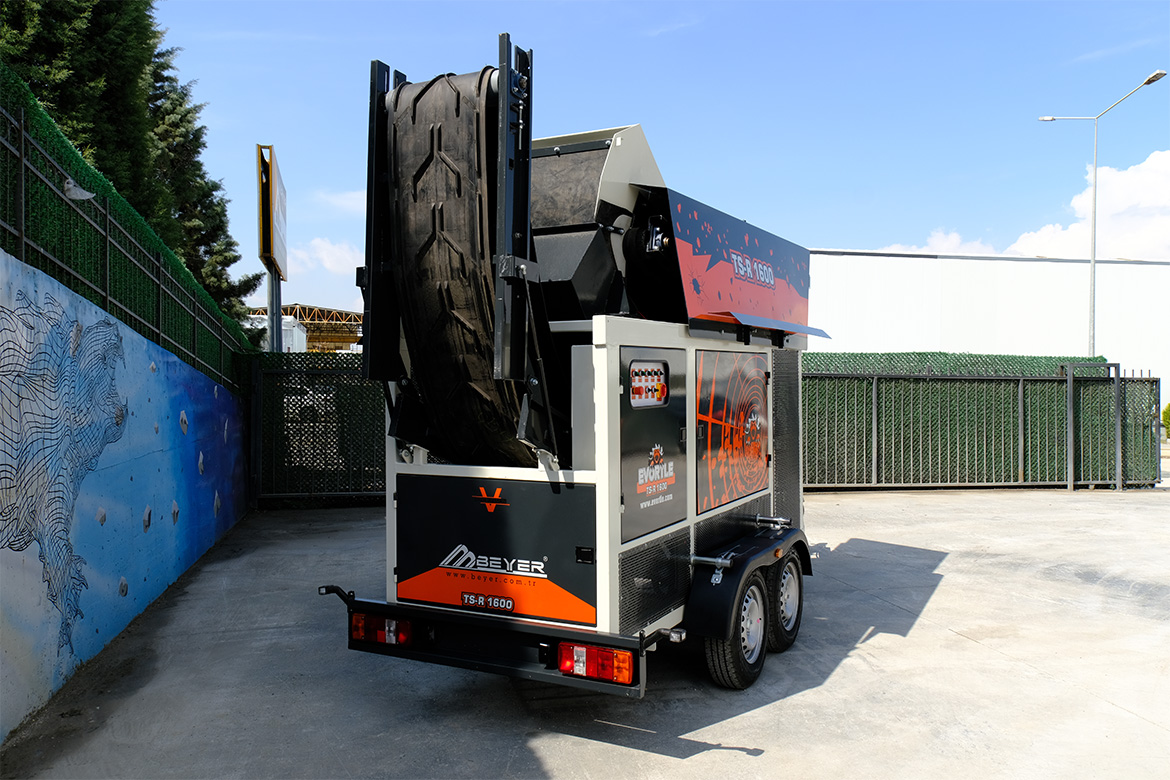

Gas Spring-Assisted Collapsible Belt Conveyor
Conveyor Belt Drive Drum ve Gear Motor

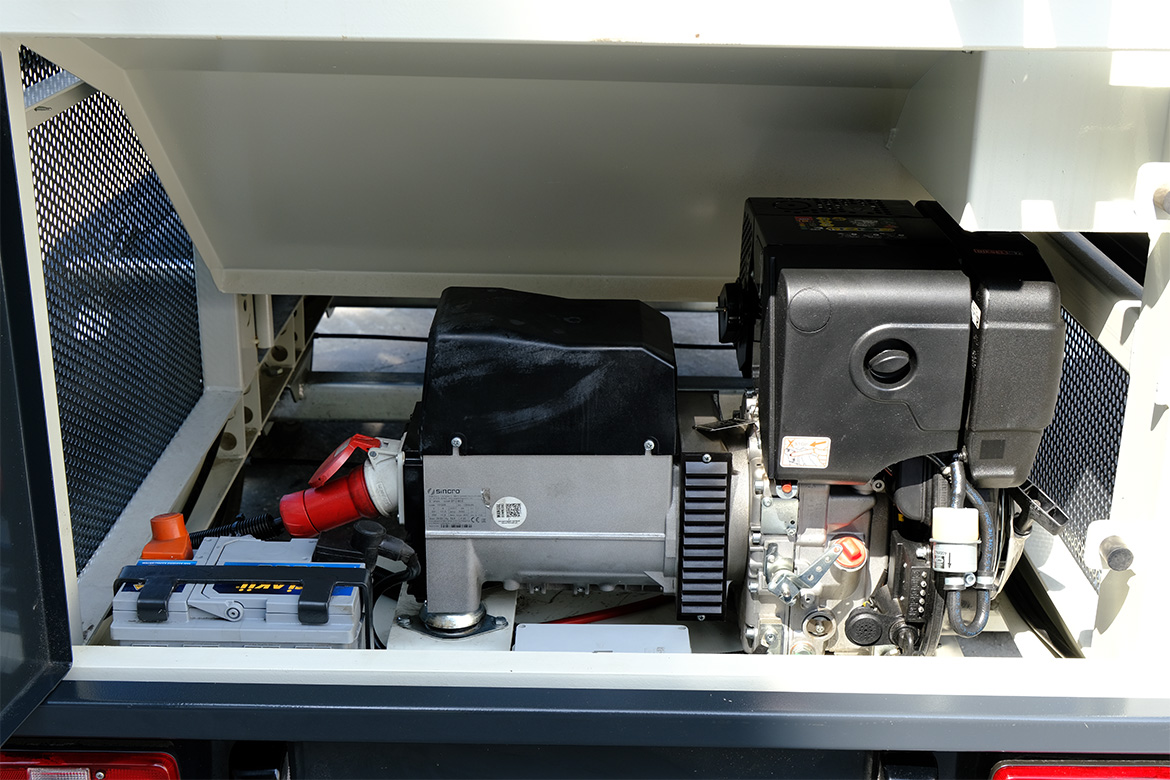

Euro Stage V Diesel Engine- Power Hatz – 6,8 Kw, 3000 RPM
Power of Alternator 50 Hz, 7 KVA
Control Panel

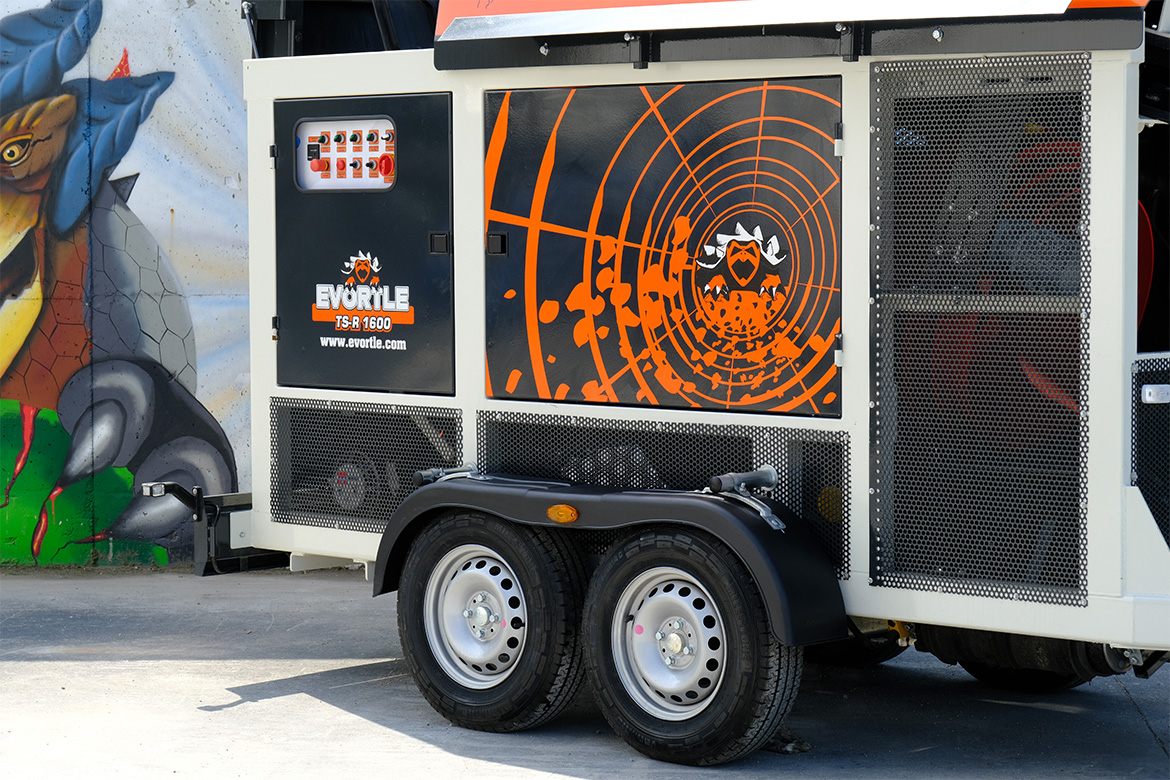

Movement Mechanism Rubber Wheel

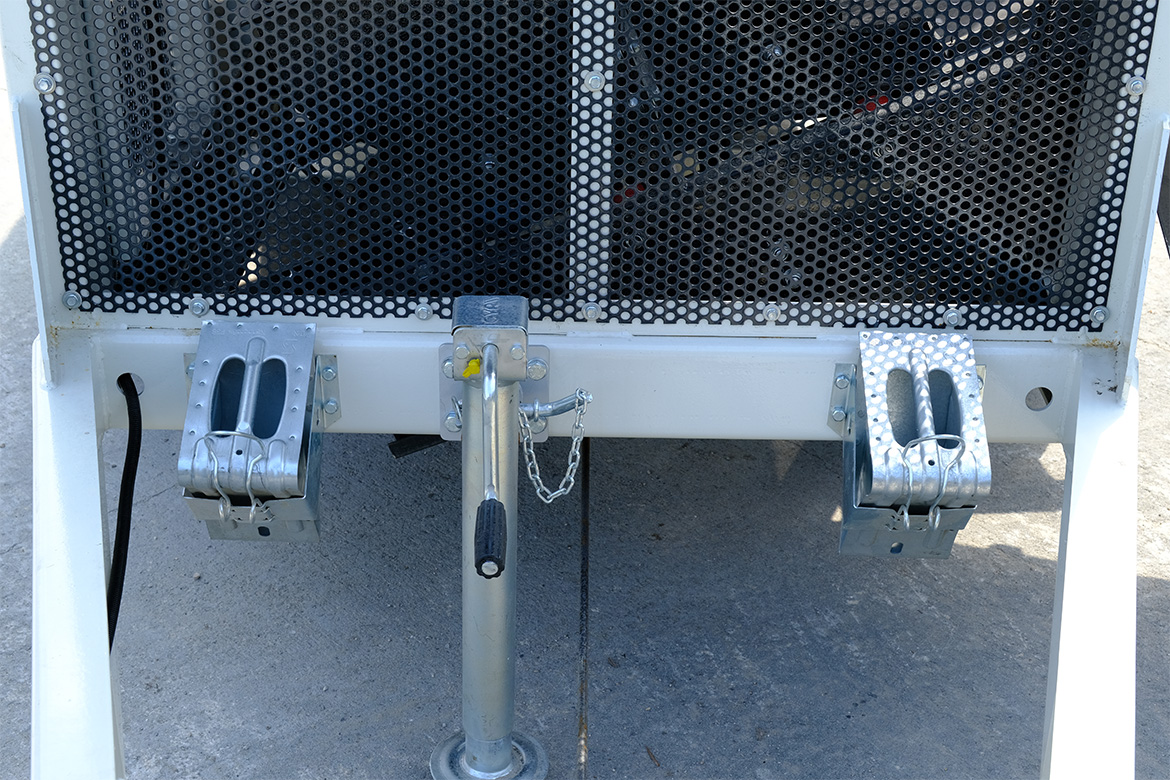

Torsion Axle with Brake, Brake Coupling and Taillights
It can be towed up to speed of 80 km/h on highway (50 mph)

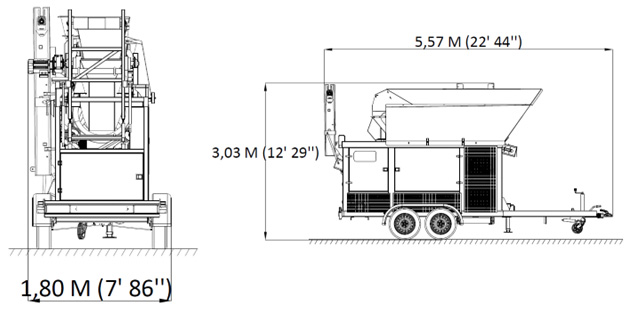

Transportation Lenght 5580 mm
Transportation Width 1800 mm
Transportation Height 3030 mm
Transportation Weight 2400 kg

Why Trommel Screen?

Thanks to its special design, trommel screens have give us a too many advantages at the same time.

• Sheet metals that is shaped like a helix enable to mix of the different type of materials effectively.

• Trommel screen that shows a high performance in moist and sticky materials block to material sticks to the screen and decrease the clogging risk.

• The meaning of the rotating screen is nonstop, fast, and efficient screen process.

What Can Be Sieved?

TS-R 1600 is for ballast, coal, aggregate, turf, soil, sand, construction waste, recycling, salt, agricultural products and any material you want to sieve.

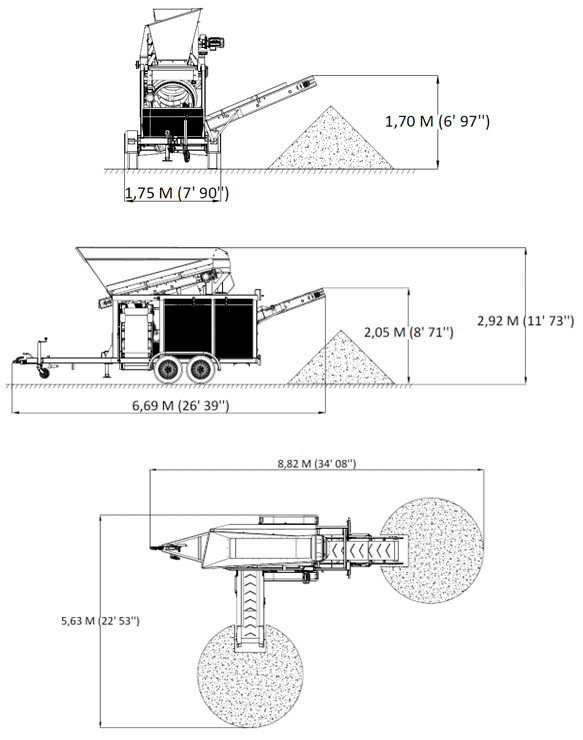

Operational Dimensions

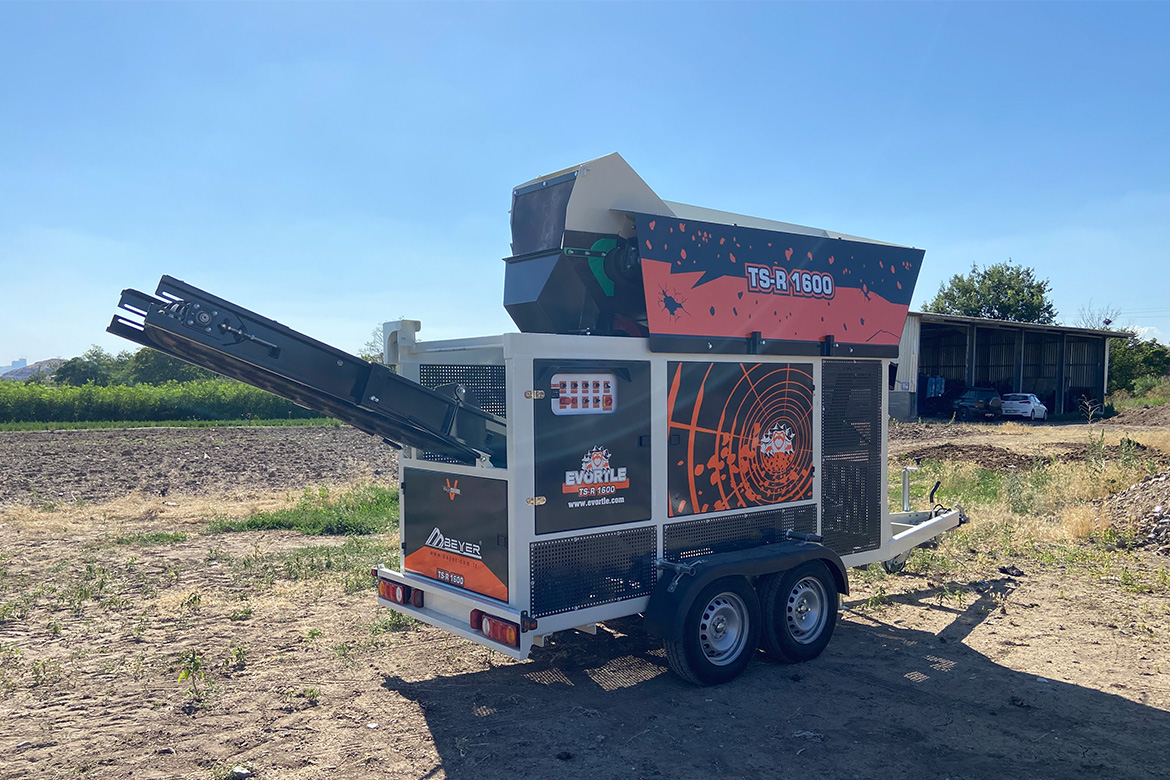

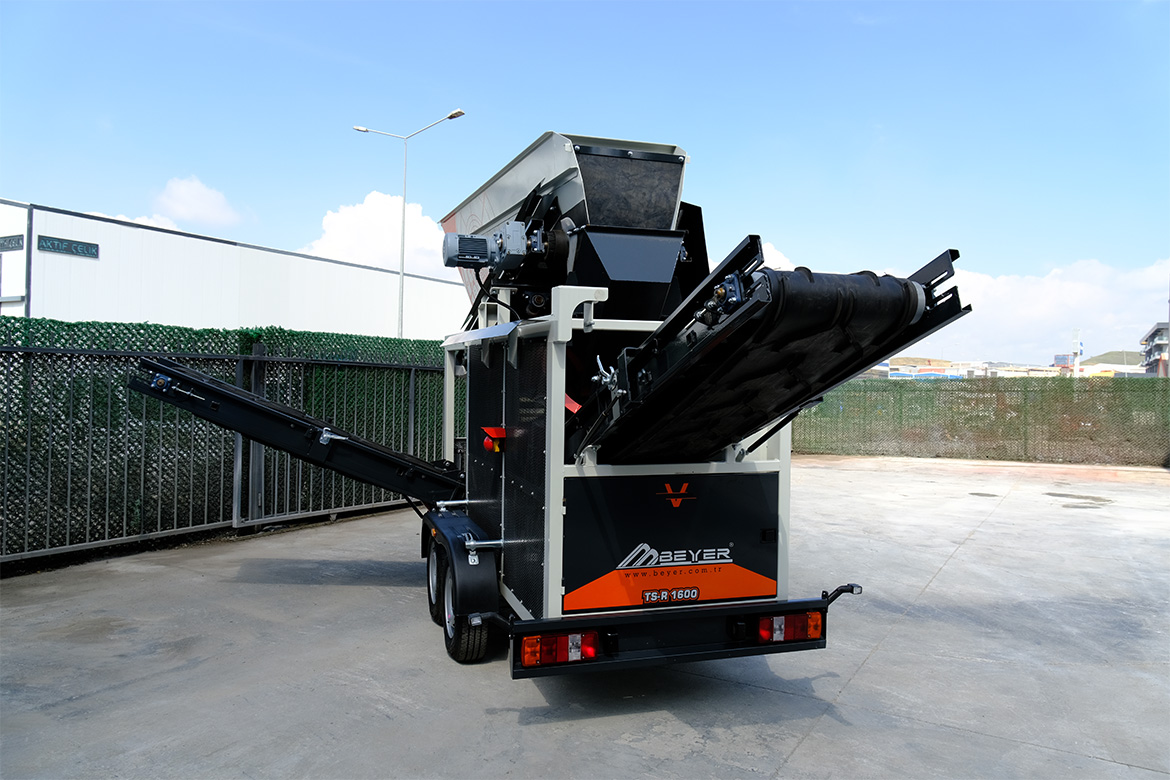

The TS-R 1600 gives you optimum use of space in small workplaces on the operation sites. Thanks to two different conveyor belts, it uses the space as efficiently as possible by throwing out the material in different directions. Foldable belts with air piston increase the drop height and expand the pile volume.

Transportational Dimensions

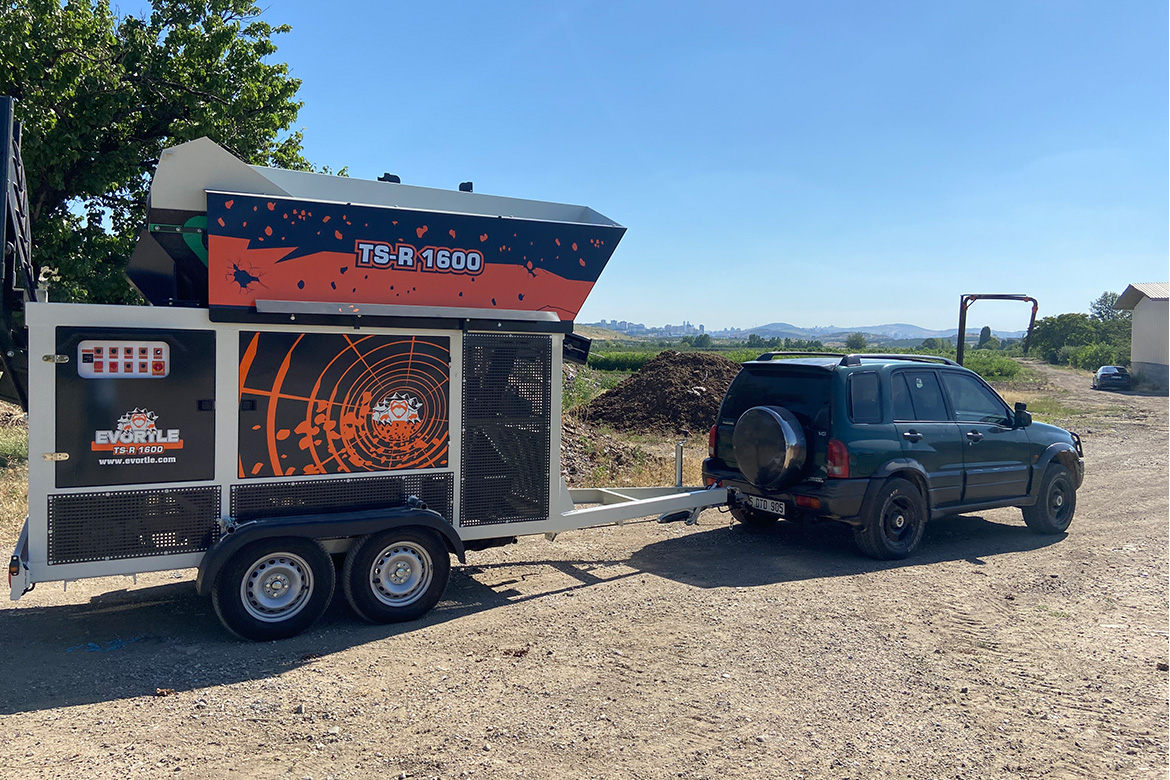

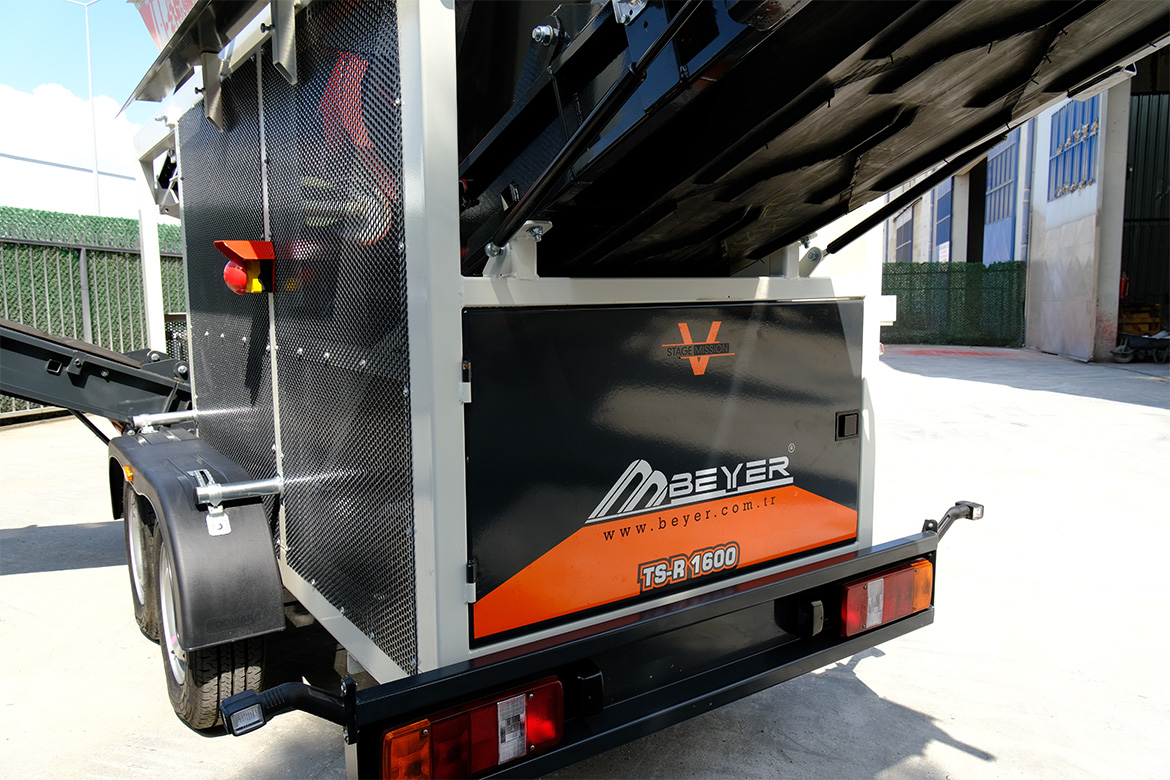

Conveyor belts with pneumatically actuated closing systems ensure that the machine remains within the width limits to go on highways. Thus, with the help of brake coupling, it has the opportunity to travel up to 80 km on highways by being towed by any vehicle. It makes easier to move your machine from one place to another with the rubber Wheel and signaling system.

The machine is ready to be taken in a very short time, such as 10 minutes, and able to be used in your different projects in different places, thanks to its mobility. With these features, compared to bulky stationary plants, you get the economic benefit of using a single machine for fast setup and for all your screening processes.
